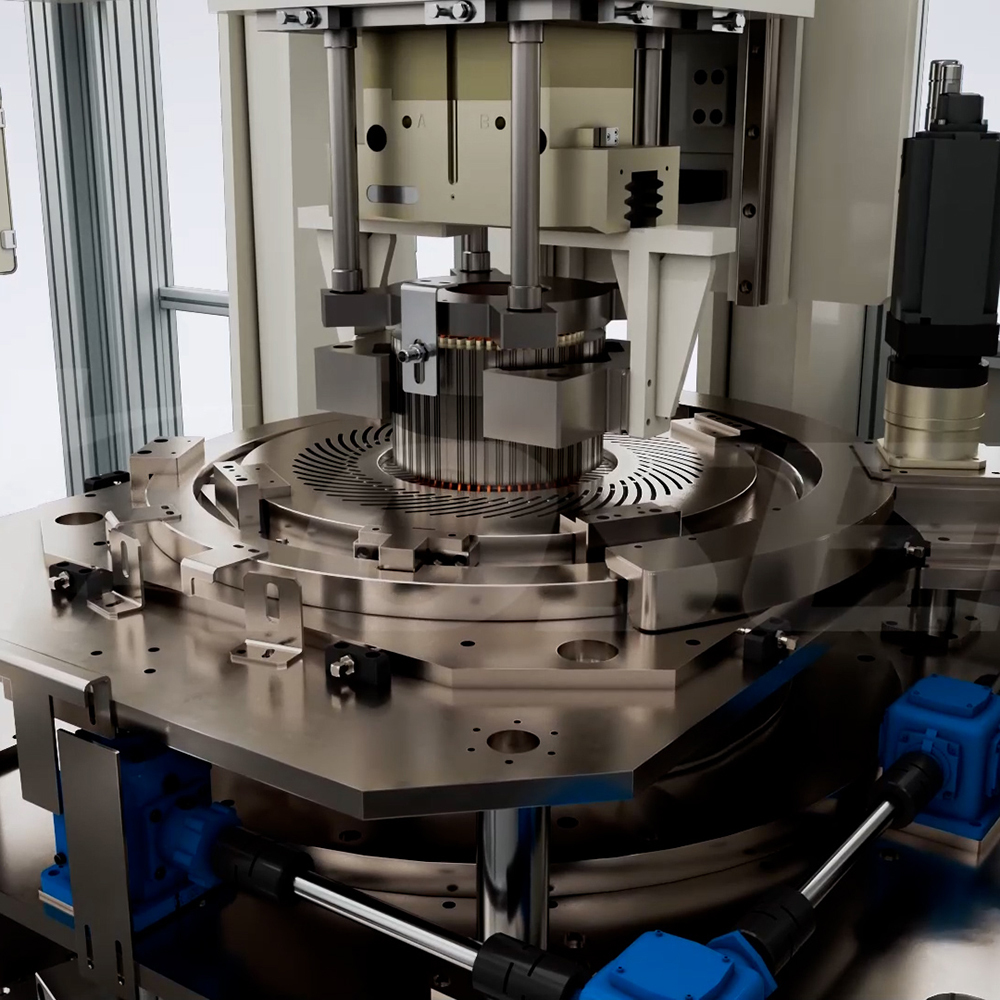

Stator Production Line

Demonstration Product

- Stator Production Line



Production Info

Engineered for intelligent manufacturing of hairpin stators in E-drive Motors, this advanced production line delivers best-in-class flexibility—seamlessly handling U-pin, Umini-pin, and X-pin designs on a single line. It enables rapid product changeovers, empowers you to meet diverse market demands with agility, and drives down operational costs while maximizing efficiency.

Project Composition

This turnkey project encompasses a fully automated stator production line and integrated support systems, enabling end-to-end manufacturing—from insulation paper insertion, precision coil forming, automated pin insertion and pressing, pin spreading, pin end twisting and trimming, precision pin welding, BUSBAR welding, varnish coating and curing, to final electrical testing.

Technology Highlights

• High-Speed Forming: Continuous feeding enables ultra-fast 1-second-per-pin cycle time, with flexible options for high-speed stamping or precision CNC forming

• Smart Manufacturing: DMC code + RFID data collection integrated with MES for full digital traceability and real-time process monitoring


• Flexible Agility: Modular design with rapid tool changeover allows seamless multi-product changeovers and mixed-model production


• Intelligent Quality Control: Robotic handling combined with AI vision systems enables real-time monitoring, automated defect isolation, and root-cause data analytics


• Synchronous Engineering: Advanced prototyping and testing lab provides expert DFM analysis and process optimization before mass production


• Proven Expertise: Full-capacity production of 10-layer U-pin stators, Umini-pin project implemented, and China's first X-pin mass production line delivered
